Medium Voltage Portfolio

MV Product Range

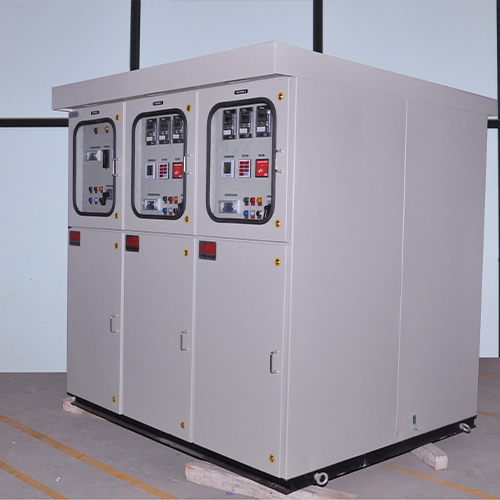

    • Avatar11kV & 33kV Switch Gear Panel cutting edge VCB technology
    • AvatarRing Main Gear

Our Prestigious Projects

BEL, Bangalore – Coastal Surveillance System Project.

Panel Details: Power Cum Automation & Distribution Panels

Airport Authority of India, Chennai, Vellore, etc..

Panel Details: Main Panel, APFC Panel, Sub Panels, PCC

Kochi Metro Rail Limited.

Panel Details: PCC, MCC, APFC, Sub Panels, Lighting Pane

NATRIP, Oragadam, Chennai.

Panel Details: 33KV HT Panels, PCC, APFC, Sub Panels, Lighting Panel, ATS Panel.

Automotive Research Association of India, Pune.

Panel Details: PCC, MCC, APFC, Sub Panels, Lighting Panel, ATS Panel.

Hindustan Copper Limited, Malanjkhand, MP.

Panel Details: MPCC, APFC, MCC (Starter Panels), VFD Panel.

IEC 62271-200 Panel

Stahllform Technik is an authorized System House of ABB for manufacturing MV switch boards up to 33kV complying to IEC 62271-200

  • Avatar Modular, compact, sturdy and adaptable design
  • Avatar Customer choice of protection, metering and control
  • Avatar Total compartmentalization with earthed metal partitions ensure live parts are inaccessible, eliminating accidental contact
  • Avatar Compatible for remote and SCADA operation
  • Avatar Long electrical & Mechanical life
  • Avatar Separately lockable shutters for bus and cable side
  • Avatar Fully compartmentalized construction with IP5X degree protection externally and IP2X between compartments
  • Avatar Motorized VCB rack in & rack out and earthing truck
